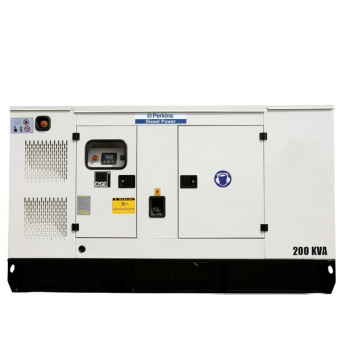

AQT-200
At AQT Generators, we take pride in being a dynamic force in the realm of diesel generator sets, offering an extensive range of international brands renowned for their reliability and performance. Our commitment to excellence is reflected in our partnerships with world-famous engine manufacturers such as Perkins and Cummins, coupled with top-notch alternators from Stamford and Leroy Somer.
-
+
Rent Now
- Optional configurations
Engine accessories:
- Heavy-duty air filter
- Coolant heater
- Lubricant oil heater
- Fuel and Water Separator
- Lube oil rotary pump
Alternator And Accessories:
- Leroy somer/stamford
- Anti condensation heater
- PMG + AVR ◇ Double bearing
- alternator High voltage ______kV
- RTDs for Bearing and winding
Cooling System:
- 55 degree Radiator
- Remote Radiator
Control System:
- AMF
- Parallel
- Practical type in low temperature environment
- Control Screen Heater
- Remote Annunciators
- Other（ComP, DEIF）
Circuit Breaker:
- 3/4 poles
- Fixed/handcart type
- Electric mechanism
Automatic Transfer Switch (ATS):
- ATS cabinet
- Contractor type ATS
- Motorized changeover type ATS
Start Battery:
- Nickel-cadmium battery
- Maintenance-free battery
- Battery charger and selector switch
- Charging current meter
External Fuel Tank:
- Single /double wall fuel tank(500-5000 L)
- Fuel Transfer pump
Exhaust Muffler:
- Residential grade
- Critical grade
- Hospital grade
Available for voltages :
- 400/230V, 480/277V, 380/220V, 440/254V, 416/240V,220/127V, 208/120V
Electrical Load Calculator
Lights
20W Tubelight
60W Light Bulb
100W Light Bulb
20W Energy Saver
Air Fans
21" LCD
DVD Player
Home Theater
Desktop PC
Laptop
Refrigerator
Freezer
Air Conditioners
1.5 Ton
2 Ton
2.5 Ton
3 Ton
3.5 Ton
4 Ton
4.5 Ton
5 Ton
Appliances
Fans
Air Coolers
Technical Specifications
Standard Specifications:
- 1. Prime Rating: Unlimited hours usage, with an average load factor of 80% over each 24 hour period. 10% overload is available for 1 hour in every 12 hours operation. 0 overload is permitted on standby power.
- 2. Standby Rating: Limited to 500 hours annual usage, with an average load factor of 80% of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on standby power.
- 3. Engine: Perkins, including air filters, fuel filters, oil filter, starting motor and charging alternator etc.
- 4. Alternator Type: brushless AC alternator
- 5. Radiator: 50°C, fan protective shroud
- 6. Fuel Tank: Capacity of fuel tank is for 8-10 hours running Built in fuel tank up to 800 kVA
- 7. Circuit Breaker: 3 pole LS MCCB
- 8. Control system alarms:
- Over and Under Speed
- Low and High Battery Volt.
- Start and Stop Failure
- Over Current
- Under / Over Generator Voltage
- Low Oil Pressure
- Emergency stop
- High engine temperature
- 9. Warranty policy:
- AQT GENERATOR products has a warranty for 12 Months or 1000 hours whichever occurs first against any manufacturing defects
- Wearing parts (filters), incorrect man made operation, maintenance failures are excluded from the warranty policy
Acoustic Enclosure Specifications:
| Enclosure Type | Acoustic & Weather Proof |
|---|---|
| Drainage Provision | Fuel and Water Drainage |
| Transportation | Tested Single Point Lifting Facility & Forklift Pockets |
| Ingress Protection Rating | IP 23 |
| Lifting | ISO Standard Lifting |
| Canopy RAL Color | TAL 9010 |
| Base frame RAL Color | RAL 9011 |
| Noise Pressure level @ 7m | 70db(A) @ 7mt |
Output Rating:
| PRIME: | STANDBY: | ||||
|---|---|---|---|---|---|
| 50 Hz—1500 Rpm 400 V, 3ph | |||||
|
|
||||
| 60 Hz—1800 Rpm 480 V, 3ph | |||||
|
|
| ENGINE SPECIFICATIONS | ||
|---|---|---|
| Engine Make | PERKINS | |
| Engine Model | 1106A-70TAG3 | |
| No. of Cylinders | 6 vertical in-line | |
| Cycle | 4 Stroke | |
| Aspiration | Turbocharged after cooled | |
| Cooling Method | Water cooled | |
| Governing Type | Electronic | |
| Governing Class | G2 – ISO 8528 Part 1 | |
| Compression Ratio | 16:1 | |
| Displacement | 7.01 L | |
| Bore/Stroke | 105 x 135 mm | |
| Dynamic Charging Alternator | 65AMP, 12V | |
| ALTERNATOR SPECIFICATIONS | ||
|---|---|---|
| Alternator Make | Leroy Somer | STAMFORD | |
| Alternator Model | TAL-046-A | UCI274G | |
| Number of Poles | 4 | |
| Number of Winding Leads | 6 | |
| Type of Bearing | Single Bearing | |
| Insulation Class – Temp Rise | Cont. H – 125/40̊ C̊ | |
| Ingress Protection Rating | IP 23 | |
| Excitation System | Self Excited | |
| AVR Model | R150 | |
| Comply with Standards | ||
|---|---|---|
| ISO 3046, BS 5514, DIN 6271, NEMA-MGI, DIN EN, BS 5000, IEC 60034,IEC 60947-2 | ||
| Alternator Operating Data | ||
|---|---|---|
| Over speed | 2250 rpm | |
| Voltage Regulation | ± 1% | |
| Harmonic Coefficient THF | < 2.5% | |
| Tel. influence TIF | < 50 | |
| Cooling air flow | 0.48 m3/ Sec | |
Engine:
Perkins heavy duty high performance industrial type diesel engine.
| COOLING SYSTEM | ||
|---|---|---|
| Total Coolant Capacity (L) | 21 L | |
| Cooling Fan Air Flow | 282 m3/ min | |
| Radiator Fan Load | 6.2 kW | |
| Heat Radiation to Room (PRP) | 11.4 kW | |
| Heat Radiation to Room (ESP) | 12.4 kW | |
| LUBRICATION SYSTEM | ||
|---|---|---|
| Oil Filter Type | Spin-On Full Flow | |
| Total Oil Capacity | 16.5 L | |
| Oil Type | API-CH-4 or ACEA E5 | |
| EXHAUST SYSTEM | ||
|---|---|---|
| Muffler Type | Industrial Grade | |
| Max. Back Pressure | 6.0 kPa | |
| Exhaust Gas Flow (PRP/ESP) | 31.5 /33.8 m3/ min | |
| Exhaust Gas Temperature | < 491 0C | |
| FUEL SYSTEM | ||
|---|---|---|
| Recommended Fuel | Class A2 Diesel | |
| Fuel Consumption Standby | 44.6 L/hr | |
| Fuel Consumption 100% PRP | 41.6 L/hr | |
| Fuel Consumption 75% PRP | 31.8 L/hr | |
| Fuel Consumption 50% PRP | 20.1 L/hr | |
| AIR SYSTEM | ||
|---|---|---|
| Air Filter Type | Dry Element | |
| Combustion Air Flow (PRP) | 13.1 m3/min | |
| Combustion Air Flow (ESP) | 13.8 m3/min | |
| Max Air Filter Intake Restriction | 5 kPA | |
Control System:
- Large back-lit text display
- Multiple display languages
- DSENET expansion compatible
- Data logging facility
- Fully configurable via PC using USB communication
- Front panel configuration
- Efficient power save mode
- 3 phase generator sensing
- Accumulated power monitoring (kWh, kVA h, kVAr h)
- Generator/load current monitoring and protection (kW)
- Breaker contol via fascia buttons
- Fuel and start outputs, configurable using can
- 4 configurable DC outputs
- 4 configurable analogue/digital inputs
- Automatically transfers between mains (utility) and generator
- Increased input and output expansion capability via dsenet
- IP65 rating (with optional gasket) offers increased resistance to water ingress
- Digital inputs; Analogue Inputs
Dimensions:
| Type | Length (mm) |
Width (mm) |
Height (mm) |
Fuel Tank ( L ) |
Weight (KG) |
|---|---|---|---|---|---|
| OPEN | 2248 | 900 | 1560 | 400 | 1560 |
| CLOSED | 3562 | 1155 | 1832 | 400 | 2201 |
